UPS batteries from Empire Scientific & Amstron, the leading manufacturer of UPS batteries and the largest inventory. All batteries are built with the highest quality cells and meet or e x ceed the original manufacturer's specifications. That's why each battery comes with a 1 year warranty, your guarantee of quality.

UPS batteries by UPS model
Cyclon Enersys Batteries
EnerSys Batteries
Emergency Lighting

You should match your battery with the connector type, dimensions, voltage & appro x imate Ah current. If you can't find the battery you need please send an email with the battery model number to: sales@batterycanada.com

RBC1	RBC24	RBC51	RBC125
RBC2	RBC25	RBC52	RBC127
RBC3	RBC26	RBC53	RBC132
RBC4	RBC27	RBC54	RBC139
RBC5	RBC29	RBC55	RBC142
RBC6	RBC30	RBC57	RBC143
RBC7	RBC31	RBC59	RBC146-Li na
RBC8	RBC32	RBC63	RBC150
RBC9	RBC33	RBC105	RBC151
RBC10	RBC34	RBC106	RBC152
RBC11	RBC35	RBC107	RBC153
RBC 12	RBC39	RBC108	RBC154
RBC13	RBC40	RBC109	RBC155
RBC14	RBC43	RBC110	RBC157
RBC17	RBC44	RBC114	RBC158
RBC18	RBC45	RBC115	RBC159
RBC20	RBC46	RBC11	RBC160
RBC21	RBC47	RBC117 10 batts	RBC161
RBC22	RBC48	RBC123	RBC162
RBC23	RBC49	RBC124	RBC163

F1 terminals = .187" (3/16") (4.8mm)wide
F2 terminals = .250" (1/4") (6.3mm)wide

Outline	Model	Type	Capacity	Size	Price	Order
	PS-260	SLA 3/16" terminal	2V/6Ah	1.97 x 1.34 x 3.94" (50.04 x 34.04 x 100.08mm) .89 lbs	$53.00Cdn ($42.40US)	Quantity:
	PS-445	SLA 3/16 " terminal	4V/4.5Ah	1.85 x 2.09 x 3.98 (46.99 x 53.09 x 101.09mm) 1.45 lbs	$28.00Cdn ($22.40US)	Quantity:
	SLA9-4	SLA 3/16" terminal	4V/9Ah	4.02 x 1.73 x 3.74 (102.11 x 43.94 x 95mm) 2.7 lbs	$34.99Cdn ($27.99US)	Quantity:
	PS-610 (IT 1.0-6)	SLA 3/16" terminal	6V/1.1Ah	1.97 x 1.65 x 2.01(50.04 x 41.91 x 51.05mm) .675 lbs	$32.00Cdn ($25.60US)	Quantity:
	NP1.2-6 PS-612 AP-613F1 (DJW6-1.2)	SLA 3/16" terminal	6V/1.2Ah	3.82 x .98 x 1.99 (97.03 x 24.89 x 50.55mm) .675 lbs	$24.00Cdn ($19.20US)	Quantity:
	PS-621 (KT625, SLAA6-2ST)	SLA 5mm faston terminals on back of battery	6V/2.0Ah	1.69 x 1.46 x 2.99" (42.93 x 37.08 x 75.95mm) 1.3 lbs	$38.00Cdn ($30.40US)	Quantity:
	SLA2.8-6 (CA631 K14139)	SLA 3/16" terminal	6V/2.8Ah	2.6 x 1.30 x 3.86 (66.04 x 33.02 x 98.04mm) 1.3 lbs	$29.00Cdn ($23.20US)	Quantity:
	PE6V3.2 (PS632 LC-R063R2PU)	SLA 3/16" terminal	6V/3.2Ah	4.65 x 2.6 x 1.3 (118.11 x 66.04 x 33.02mm) 1.5 lbs	$38.98Cdn ($31.18US)	Quantity:
	SLA3-6 PS-630 (BP3-6 WKA6-3.3F)	SLA 3/16" terminal	6V/3.4Ah	5.28 x 1.34 x 2.64 (134.11 x 34.04 x 67.06mm) 1.55 lbs	$22.00Cdn ($17.60US)	Quantity:
	PS-640 F1 (3FM4, 3FM5, BP4.5-6, FP645, DJW6-4.0, DM-64 FP650, 3-FM-4.5, LC-S064R1PU LCS-416P, LT645, NP4-6, NP4.5-6 PS-640-F1, SLA0905 SY640C, UB645)	SLA 3/16" terminal	6V/4.5Ah	2.76 x 1.85 x 4.21 (70.10 x 46.99 x 106.94mm) 1.9 lbs	$18.00Cdn ($14.40US)	Quantity:
	AP-660F1 Same as above but longer runtime	SLA 3/16" terminal	6V/6Ah	2.8 x 1.89 x 3.94 (71.12 x 48.01 x 100.08mm) 1.9 lbs	$27.00Cdn ($21.60US)	Quantity:
	PS-650LS	SLA Lantern Spring terminal	6V/5Ah	2.64 x 2.65 x 3.94 (67.06 x 67.31 x 100.08mm) 1.9 lbs	$47.00Cdn ($37.60US)	Quantity:
	PS665P	SLA Pos. terminal 1/4" Neg. terminal 3/16"	6V/6.5Ah	3.86 x 2.2 x 4.02 (98.04 x 55.88 x 102.11mm) 2.7lbs	$65.00Cdn ($52.00US)	Quantity:
	AP-670F1 NP7-6 (LC-R067R2P PE6V7.2 SA672)	SLA 3/16" terminal	6V/7Ah	5.94 x 1.38 x 3.67" (150.88 x 35.05 x 93.22mm) 3 lbs	$45.00Cdn ($36.00US)	Quantity:
	GP-672F1 6CE7.5T1, FP672, GP670 GP672 LCRB066R5P,LCR067R2P LCR6V6.5BP, LCR6V7.2P PE-6V7.2, PE-6V7.2F1 PE6V7.2, PE6V7.2F1 PS670, RBC-18, SA672	SLA 3/16" terminal	6V/7.2Ah	5.94 x 1.34 x 3.94" (150.88 x 34.04 x 100.08mm) 3 lbs	$28.00Cdn ($22.40US)	Quantity:
	LC-R067R2P Original Panasonic GP670, GP670F1, GP672, GP672F1, GPL672, GPL672F1, LC-RB066R5P, LCR067R2P, LCR6V6.5BP, LCR6V7.2P, PE-6V7.2, PE-6V7.2F1, PE6V7.2, PE6V7.2F1, PS670, RBC-18	SLA 3/16" terminal	6V/7.2Ah	5.95 x 1.34 x 3.7" (151.13 x 34.04 x 93.98mm) 3 lbs	$39.00Cdn ($31.20US)	Quantity:
	SLA9-6 PS-682	SLA 3/16" terminal	6V/9Ah	3.86 x 2.21 x 4.65 (98.04 x 56.13 x 118.11mm) 3.6 lbs	$28.00Cdn ($22.40US)	Quantity:
	LC-R0612P Original Panasonic	SLA 3/16" terminal	6V/12Ah	5.94 x 1.97 x 3.7" (150.88 x 50.04 x 93.98mm)	$45.00Cdn ($36.00US)	Quantity:
	AP-6120F1 (BAT-6V12A)	SLA 3/16" terminal	6V/12Ah	5.94 x 1.97 x 3.7" (150.88 x 50.04 x 93.98mm) 4.1lbs	$38.98Cdn ($31.18US)	Quantity:
	AP-6120F2 GP-6120F1 GP6120F2 Yuasa NP12-6) (RBC3-use 2 batteries or one SLA10-12/T25) (LCR6V12P1)	SLA 3/16" terminal	6V/12Ah	5.94 x 1.97 x 3 .7" (150.88 x 50.04 x 93.98mm) 4.1lbs	$38.98Cdn ($31.18US)	Quantity:
	SLA12-6	SLA recessed terminals	6V/12Ah	4.25 x 2.76 x 5.51" (107.95 x 70.10 x 139.95mm) 5.4 lbs	$45.00Cdn ($36.00US)	Quantity:
	PS-6200 12-293, C0309, DJW6-20, GS056S2, LP6-20, LP6-20-T3, PE6V20, PS-6200, SLA0986, SP6-20-NB, UB6200, WP20-6	SLA nut & bolt terminal	6V/20Ah	6.18 x 3.27 x 4.92" (156.97 x 83.06 x 124.97mm) 4lbs	$105.00Cdn ($84.00US)	Quantity:
	PS-832 LP8-3.2 (DJW8-3.2 LP8-3-2-T1 SP8-3.2-T1)	SLA 3/16" terminal	8V/2.9Ah	5.28 x 1.44 x 2.18" (134.11 x 36.58 x 55.37mm) 1.9 lbs	$39.00Cdn ($31.20US)	Quantity:
	PS-1208WL (AlarmForce ELK1208J2, CP1208, DJW12-.08, PS-1208, NP0.8-12, PS-1208W, PS-1208WL, UB1208, UT-1208)	SLA	12V/0.8Ah	3.8 x .98 x 2.42 (96.52 x 24.89 x 61.47mm) .785lbs	$39.00Cdn ($31.20US)	Quantity:
	NP1.2-12 Yuasa (CA1212, CP1212, BD1212, LC-R121R3PG, P1564, PS-1212)	SLA 3/16" terminal	12V/1.2Ah	3.82 x 1.89 x 1.99" (97.03 x 48.01 x 50.55mm) 1.35 lbs	$55.00Cdn ($44.00US)	Quantity:
	NP2-12 Genesis	SLA 3/16" terminal	12V/2.0Ah	5.91 x .79 x 3.35" (150.11 x 20.07 x 85.09mm) 1.6 lbs	$77.00Cdn ($61.60US)	Quantity:
	LP12-2.2 HYS1222 replacement	SLA 3/16" terminal	12V/2.2Ah	2.79 x 1.89 x 3.86" (70.87 x 48.01 x 98.04mm) 2.16 lbs	$49.00Cdn ($39.20US)	Quantity:
	SLA2.2-12 PS-1220 (FP1223)	SLA 3/16" terminal	12V/2.2Ah	7.01 x 1.38 x 2.64" (178.05 x 35.05 x 67.06mm) 2.16 lbs	$38.95Cdn ($31.16US)	Quantity:
	LC-R122P2PU LC-R122R2PU LCR12V1.9P LCR12V2.2P LCR12V2.2PF P171	SLA 3/16" terminal Original Panasonic	12V/2.2Ah	6.97 x 1.34 x 2.36" (177.04 x 34.04 x 59.94mm) 2.16 lbs	$55.00Cdn ($44.00US)	Quantity:
	CA1223 NP2.3-12FR (BD2312, NP2.3-12FP)	SLA 3/16" terminal	12V/2.3Ah	7 x 1 x 3" (177.8 x 25.4 x 76.2mm)	$38.95Cdn ($31.16US)	Quantity:
	SP12-2.5 Lantern Battery	SLA	12V/2.5Ah 3/16" terminals on side of battery	4 x 1.81 x 2.76" (101.6 x 45.97 x 70.10mm)	$41.00Cdn ($32.80US)	Quantity:
	PS-1220 (BD2312, NP2.3-12FP)	SLA	12V/2.5Ah 3/16" terminal	7 x 1.38 x 2.36" (177.8 x 35.05 x 59.94mm)	$38.95Cdn ($31.16US)	Quantity:
	PS-1227 (Leoch LP12-2.9 Kung Long WP2.9-12TR Fender P10W )	SLA 3/16" terminal	12V/2.93Ah	3.11 x 2.2 x 3.9" (78.99 x 55.88 x 99.06mm) 3 lbs	$38.98Cdn ($31.18US)	Quantity:
	ES3-12R (PS-1228 LP12-2.8 NP3-12)	SLA 3/16" terminal	12V/2.8Ah	5.20 x 1.3 x 3.86" (132.08 x 33.02 x 98.04mm) 2.5 lbs	$45.00Cdn ($36.00US)	Quantity:
	PS1230 GH1234 (6FM3.5, 1500, A512/3.5 S CP1232 WP3-12)	SLA 3/16" terminal	12V/3.4Ah	5.28 x 2.64 x 2.36" (134.11 x 67.06 x 59.94mm) 3.1 lbs	$39.00Cdn ($31.20US)	Quantity:
	LC-R123R4PU Original Panasonic NPH3.2-12FR (RBC35)	SLA 3/16" terminal	12V/3.4Ah	5.28 x 2.64 x 2.36" (134.11 x 67.06 x 59.94mm) 3.1 lbs	$55.00Cdn ($44.00US)	Quantity:
	SHR3.6-12	SLA 1/4" terminal	12V/3.6Ah	4.02 x 1.89 x 2.58" (102.11 x 48.06 x 65.53mm) 1.55 lbs	$51.00Cdn ($40.80US)	Quantity:
	Yuasa YTX4L-BS	SLA PowerSports AGM battery is supplied dry charged with acid bottle.	12V/4Ah CCA50 6 month warranty	4.85 x 2.81 x 3.31" (123.19 x 71.37 x 84.07mm) 3.4 lbs	$55.00Cdn ($44.00US)	Quantity:
	HC1217W (EP1217W)	SLA	12V/4.5Ah (The spade terminals are perpendicular & recessed on this battery)	5.5 x 4 x 1.9" (139.7 x 101.6 x 48.26mm) 3.5lbs	$48.00Cdn ($38.40US)	Quantity:
	SLA5-12 SLA4-12 AP-1250F1 (CB1240, CP1250, E1250, GP1245, HR1221WF1, NP4-12, PK12V4.0, RT1250, UB1245)	SLA 3/16" terminal This battery is used in many security alarm systems.	12V/5Ah (a 6Ah battery is a longer lasting battery than a 4Ah or 4.5Ah battery and is fully interchangeable)	3.56 x 2.77 x 3.94" (90.42 x 70.36 x 100.08mm) 4lbs	$28.98Cdn ($23.18US)	Quantity:
	AP-1250-F2 CP1250-F2FR RBC29, RBC30 RBC43, RBC44, RBC45, RBC46 RBC143, HR1221W F2 CP1250, NP x -25FTR PS1250, RT1250)	SLA 1/4" terminal	12V/5Ah	3.56 x 2.77 x 3.94" (90.42 x 70.36 x 100.08mm) 4lbs	$28.98Cdn ($23.18US)	Quantity:
	TLV1260A BP5.5-12RT HC1225W /P RBC10, RBC21	SLA (The spade terminals are perpendicular & recessed on this battery)	12V/5.5Ah	5.5 x x1.89 x 4.02" 3.95 lbs	$48.00Cdn ($38.40US)	Quantity:
	SLA12-6	SLA recessed terminals Pos. 1/4" Neg. 3/16"	12V/6Ah	4.24 x 2.76 x 5.51" (107.7 x 70.10 x 139.95mm) 5.4lbs	$45.00Cdn ($36.00US)	Quantity:
	HR6-12 (RBC114 RBC153 RBC154 HR1224W)	SLA 3/16 " terminal	12V/6.4Ah	5.94 x 2.01 x 3.7" (150.88 x 51.05 x 93.98mm)	$69.00Cdn ($55.20US)	Quantity:
	Sonnenschein A512/6.5 S	SLA 3/16" terminal	12V/6.5Ah	5.97 x 2.57 x 3.72" (151.64 x 65.28 x 94.49mm)	$147.00Cdn ($117.60US) 2 week lead time	Quantity:
	CP1270F2 (RBC2, RBC17, RBC24, BP7-12, CP1270, LCR12V65 LC-R127R2P1 BP7-12 GP1270 F2 GP1272 F2, NPW36-12 NPW45-12, PE12V7.2 RBC17, RBC48, RBC110	SLA 1/4" terminal	12V/7Ah	5.95 x 2.56 x 3.94" (151.13 x 65.02 x 100.08mm) 5.5lbs	$45.00Cdn ($36.00US)	Quantity:
	CP1270-F1 (6FM6, A512, BD7-12, E1270, E1275, NP7-12, NP7-12FR, RBC54, D1272 GP1270 F1, LW-6FM6 PS-1270F1 SA1272, UB1270, UT1270, UT1280)	SLA 3/16" terminal	12V/7Ah	5.95 x 2.56 x 3.94" (151.13 x 65.02 x 100.08mm) 5.5lbs	$45.00Cdn ($36.00US)	Quantity:
	Yuasa YTX7A-BS Maintenance-Free PowerSports	AGM battery is totally sealed and comes with acid bottle as it is shipped dry. 6 month warranty	12V/7Ah 105 CCA	6 x 3.44 x 3.75" (152.4 x 87.38 x 95.25mm) 6.6lbs	$87.00Cdn ($69.60US) Ground shipping only	Quantity:
	AP-1290-F2 CP1290H-FR RBC17, RBC51 RBC124, CP1290 HR1234W, NPW45-12 PS1290F2, SLA1088 UB1290, WP1234W, WP1236W	SLA 1/4" terminal	12V/9Ah 29% longer runtime than the same size 7Ah battery	5.94 x 2.56 x 3.7" (151.13 x 65.02 x 100.08mm) 5.75lbs	$49.00Cdn ($39.20US)	Quantity:
	AP-1290F1 (HR1234W F1)	SLA 3/16" terminal(Supplied with F2-F1 adapter)	12V/9Ah 29% longer runtime than the same size 7Ah battery	5.94 x 2.56 x 3.7" (151.13 x 65.02 x 100.08mm) 5.75lbs	$49.00Cdn ($39.20US)	Quantity:
	UB12100-S (PSH-12100FR, RT12100 WP1012 WP10-12SE)	SLA 1/4" terminal	12V/10Ah	5.94 x 2.56 x 4.37" (151.13 x 65.02 x 111mm) 8lbs	$65.00Cdn ($52.00US)	Quantity:
	Yuasa YTZ14S Maintenance-Free Motorcycle Generator Battery	Sealed AGM.	12V/11.2Ah	6.0 x 3.43 x 4.38" (152.4 x 87.12 x 111.25mm) 8.6lbs	$232.00Cdn ($185.60US) 6 month warranty. 1 week lead time	Quantity:
	AP-12120F2 (RBC4, 6-DZM-10 FP12120, GP12110 HF12-12, NP12-12 PS-1210F2, RM12-12 TPH12100, TR12-12F2 UB12120, WP12-12, WPHR12-12)	SLA 1/4" terminal Can be supplied with 3/16" terminal adapter at no charge	12V/12Ah	5.97 x 3.89 x 3.78" (151.64 x 98.81 x 96.01mm) 10lbs	$55.00Cdn ($44.00US)	Quantity:
	Yuasa YTX14-BS Maintenance-Free PowerSports Battery	Sealed, Dry Charge AGM. Supplied with acid bottle.	12V/12Ah	6 x 3.44 x 5.75" (152.4 x 87.38 x 146.05mm) 10lbs	$113.00Cdn ($90.40US) 6 month warranty	Quantity:
	CP12170 (90P4831, BP17-12 DCM0018, EV x -12170 GP12170 LC-R1217, LC12V17, NP18-12 PE12V18, PS-12180, RBC7,RBC11 UB12180)	SLA	12V/17Ah	7.06 x 2.93 x 6.57" (179.32 x 74.42 x 166.88mm) 15lbs	$65.00Cdn ($52.00US)	Quantity:
	AP-12220EV-NB (6-FM-22, BP17-12, EVX-12170 GP12170, LC-R1217, LC12V17, LW 6FM22, NP18-12 PE12V18, PS-12180, RBC7,RBC11, SBB 6FM22 UB12180)	SLA Deep cycle Electric vehicles & wheelchairs	12V/22Ah NB connector	7.13 x 3.03 x 6.57" (181.10 x 76.96 x 166.88mm) 15 lbs	$97.00Cdn ($77.60US)	Quantity:
	SLA24-12	SLA	12V/24Ah NB Terminal	6.54 x 6.89 x 4.92" (166.12 x 175.01 x 124.97mm) 22lbs	$85.00Cdn ($68.00US)	Quantity:
	G12V26EP Enersys Genesis EP	SLA	12V/26Ah M6 screw Terminal	6.92 x 6.56 x 4.96" (175.77 x 166.62 x 125.98mm) 22lbs	$345.00Cdn ($276.00US) 1 week lead time	Quantity:
	EVX12260 (DJW12-26, PB12260 PS-12260-NB) Sealake FM12330 replacement - postive terminal on right & different dimensions.	Deep Cycle SLA Designed for electric vehicles	12V/26Ah Nut & Bolt terminal	6.60 x 6.90 x 4.90" (167.64 x 175.26 x 124.46mm) 21lbs	$149.00Cdn ($119.20US)	Quantity:
	PG33-12 Powerload U1	SLA (screw terminal) Electric vehicles & wheelchairs	12V/33Ah	7.68 x 5.12 x 6.26" (195.07 x 130.05 x 159mm 23.5lbs	$145.00Cdn ($116.00US)	Quantity:
	AP12-33EV (FM12330, GP12340 LC-R123, LCL-12V33 LCLA-1233, PS12330 U1-33-12)	SLA AGM Deep Cycle (flag terminal) Electric vehicles & wheelchairs	12V/33Ah	7.68 x 5.12 x 6.26" (195.07 x 130.05 x 159mm) 23.5lbs	$130.00Cdn ($104.00US)	Quantity:
	PG-12V55FR (screw terminal)	SLA	12V/55Ah	9.02 x 5.43 x 8.15" (229.11 x 137.92 x 207.01mm) 41lbs	$250.00Cdn ($200.00US)	Quantity:
	SLA55-12 AP12-55-NB (nut & bolt terminal) (WKDC12-55P)	SLA AGM Electric vehicles & wheelchairs	12V/55Ah	9.04 x 5.45 x 8.15" (229.62 x 138.43 x 207.01mm) 39lbs	$205.00Cdn ($164.00US)	Quantity:
	AP12-75 (Flag Terminal)	SLA (To save money rebuild APC RBC14 with 4 each PS12750 re-using original fuses, interconnects and connector harness)	12V/75Ah	6.61 x 10.2 x 8.19" (167.89 x 259.08 x 208.03mm) 52lbs	$250.00Cdn ($200.00US) 1 week lead time	Quantity:

1 amp Battery Charger/Maintainer

Outline	Type	Capacity	Price	Order
	CHG-003 Automatic Float Charger Comes with clip leads.	For use with 12 volt Lead Acid batteries.	$28.95Cdn ($23.16US)	Quantity:
	Automatic Float Charger Comes with clip leads.	For use with 6 volt Lead Acid batteries.	$28.95Cdn ($23.16US)	Quantity:

Battery Chargers

Outline	Type	Capacity	Price	Order

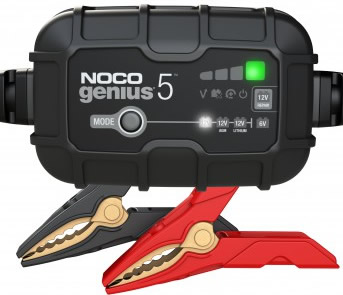

	Genius 5	12v & 6v - 1 Bay 5amp Charger. Includes clips	$139.00Cdn ($111.20US)	Quantity: 2 week lead time
	Gen 1 Comes with ring terminals	12v - 1 Bay 10amp Charger. Details	$198.00Cdn ($158.40US)	Quantity: 2 week lead time
	Gen 4 3 stage charging Comes with ring terminals	12v - 4 Bay 40amp Charger. Details	$525.00Cdn ($420.00US)	Quantity: 2 week lead time

Rebuild your own APC RBC battery pack and save

APC Model
RBC1 Rebuild using 2 AP-660F1 batteries and the original wiring harness & fuse
RBC5 Rebuild using 2 AP1270F2 batteries and the original wiring harness & fuse
RBC6 Rebuild using 2 AUP-6 batteries and the original wiring harness & fuse
RBC7 or rebuild using the original wiring harness & fuse
RBC8 Rebuild using 4 CP-1270F2 batteries and the original wiring harness & fuse
RBC9 Rebuild using 2 CP-1270 batteries and the original wiring harness & fuse
RBC11 Rebuild using 4 AP-12180NB batteries and the original wiring harness & fuse
RBC12 Rebuild using 8 CP1270 batteries and the original wiring harness & fuse
RBC18 Rebuild using 2 AP-670F1 batteries and the original wiring harness & fuse
RBC22 Rebuild using 4 CP1270F2 batteries and the original wiring harness & fuse
RBC23 Rebuild using 4 CP1270F2 batteries and the original wiring harness & fuse
RBC24 Rebuild using 4 CP-1270/T25 batteries and the original wiring harness & fuse
RBC25 Rebuild using 4 CP1270 batteries and the original wiring harness & fuse
RBC26 Rebuild using 8 CP1270 batteries and the original wiring harness & fuse
RBC27 Rebuild using 8 CP1270 batteries and the original wiring harness & fuse
RBC29 Rebuild using 1 AP1250F2 battery and the original wiring harness & fuse
RBC30 Rebuild using 1 AP1250F2 battery and the original wiring harness & fuse
RBC31 Rebuild using 4 CP1270 batteries and the original wiring harness & fuse
RBC32 RBC33 Rebuild using 2 CP1270 batteries and the original wiring harness & fuse
RBC34 Rebuild using 4 CP-670F1 batteries and the original wiring harness & fuse.
RBC43 Rebuild using 8 AP1250F2 batteries and the original wiring harness & fuse.
RBC44 Rebuild using 16 AP-1250F2 batteries and the original wiring harness & fuse.
RBC48 Rebuild using 2 CP1270 batteries and the original wiring harness & fuse
RBC53 Rebuild using 2 CP1270F2 batteries and the original wiring harness & fuse
RBC57 Rebuild using 4 - 12 volt batteries and the original wiring harness & fuse
RBC59 Rebuild using 4 CP1270F2 batteries and the original wiring harness & fuse
RBC105 Rebuild using 8 CP1270 and the original wiring harness & fuse
RBC123 Rebuild using 2 CP1270 batteries and the original wiring harness & fuse
RBC124 Rebuild using 2 CP1290F2 batteries and the original wiring harness.

OUR PRODUCT LIST

UPS, SLA, Emergency Lighting, Electric Vehicle, Batteries

1.97 x 1.34 x 3.94" (50.04 x 34.04 x 100.08mm) .89 lbs

1.85 x 2.09 x 3.98 (46.99 x 53.09 x 101.09mm) 1.45 lbs

4.02 x 1.73 x 3.74 (102.11 x 43.94 x 95mm) 2.7 lbs

1.97 x 1.65 x 2.01(50.04 x 41.91 x 51.05mm) .675 lbs

3.82 x .98 x 1.99 (97.03 x 24.89 x 50.55mm) .675 lbs

1.69 x 1.46 x 2.99" (42.93 x 37.08 x 75.95mm) 1.3 lbs

2.6 x 1.30 x 3.86 (66.04 x 33.02 x 98.04mm) 1.3 lbs

4.65 x 2.6 x 1.3 (118.11 x 66.04 x 33.02mm) 1.5 lbs

5.28 x 1.34 x 2.64 (134.11 x 34.04 x 67.06mm) 1.55 lbs

(3FM4, 3FM5, BP4.5-6, FP645, DJW6-4.0, DM-64FP650, 3-FM-4.5, LC-S064R1PU LCS-416P, LT645, NP4-6, NP4.5-6 PS-640-F1, SLA0905 SY640C, UB645)

2.76 x 1.85 x 4.21 (70.10 x 46.99 x 106.94mm) 1.9 lbs

2.8 x 1.89 x 3.94 (71.12 x 48.01 x 100.08mm) 1.9 lbs

2.64 x 2.65 x 3.94 (67.06 x 67.31 x 100.08mm) 1.9 lbs

3.86 x 2.2 x 4.02 (98.04 x 55.88 x 102.11mm) 2.7lbs

5.94 x 1.38 x 3.67" (150.88 x 35.05 x 93.22mm) 3 lbs

6CE7.5T1, FP672, GP670GP672 LCRB066R5P,LCR067R2P LCR6V6.5BP, LCR6V7.2P PE-6V7.2, PE-6V7.2F1 PE6V7.2, PE6V7.2F1 PS670, RBC-18, SA672

5.94 x 1.34 x 3.94" (150.88 x 34.04 x 100.08mm) 3 lbs

Original Panasonic

GP670, GP670F1, GP672, GP672F1, GPL672, GPL672F1, LC-RB066R5P, LCR067R2P, LCR6V6.5BP, LCR6V7.2P, PE-6V7.2, PE-6V7.2F1, PE6V7.2, PE6V7.2F1, PS670, RBC-18

5.95 x 1.34 x 3.7" (151.13 x 34.04 x 93.98mm) 3 lbs

3.86 x 2.21 x 4.65 (98.04 x 56.13 x 118.11mm) 3.6 lbs

5.94 x 1.97 x 3.7" (150.88 x 50.04 x 93.98mm)

5.94 x 1.97 x 3.7" (150.88 x 50.04 x 93.98mm) 4.1lbs

GP6120F2 Yuasa NP12-6) (RBC3-use 2 batteries or one SLA10-12/T25) (LCR6V12P1)

5.94 x 1.97 x 3 .7" (150.88 x 50.04 x 93.98mm) 4.1lbs

4.25 x 2.76 x 5.51" (107.95 x 70.10 x 139.95mm) 5.4 lbs

12-293, C0309, DJW6-20, GS056S2, LP6-20, LP6-20-T3, PE6V20, PS-6200, SLA0986, SP6-20-NB, UB6200, WP20-6

6.18 x 3.27 x 4.92" (156.97 x 83.06 x 124.97mm) 4lbs

5.28 x 1.44 x 2.18" (134.11 x 36.58 x 55.37mm) 1.9 lbs

(AlarmForce ELK1208J2, CP1208, DJW12-.08, PS-1208, NP0.8-12, PS-1208W, PS-1208WL, UB1208, UT-1208)

3.8 x .98 x 2.42 (96.52 x 24.89 x 61.47mm) .785lbs

(CA1212, CP1212, BD1212, LC-R121R3PG, P1564, PS-1212)

3.82 x 1.89 x 1.99" (97.03 x 48.01 x 50.55mm) 1.35 lbs

5.91 x .79 x 3.35" (150.11 x 20.07 x 85.09mm) 1.6 lbs

2.79 x 1.89 x 3.86" (70.87 x 48.01 x 98.04mm) 2.16 lbs

7.01 x 1.38 x 2.64" (178.05 x 35.05 x 67.06mm) 2.16 lbs

LC-R122P2PU LC-R122R2PU LCR12V1.9P LCR12V2.2P LCR12V2.2PF P171

6.97 x 1.34 x 2.36" (177.04 x 34.04 x 59.94mm) 2.16 lbs

(BD2312, NP2.3-12FP)

7 x 1 x 3" (177.8 x 25.4 x 76.2mm)

4 x 1.81 x 2.76" (101.6 x 45.97 x 70.10mm)

7 x 1.38 x 2.36" (177.8 x 35.05 x 59.94mm)

3.11 x 2.2 x 3.9" (78.99 x 55.88 x 99.06mm) 3 lbs

5.20 x 1.3 x 3.86" (132.08 x 33.02 x 98.04mm) 2.5 lbs

(6FM3.5, 1500, A512/3.5 S CP1232 WP3-12)

5.28 x 2.64 x 2.36" (134.11 x 67.06 x 59.94mm) 3.1 lbs

5.28 x 2.64 x 2.36" (134.11 x 67.06 x 59.94mm) 3.1 lbs

4.02 x 1.89 x 2.58" (102.11 x 48.06 x 65.53mm) 1.55 lbs

4.85 x 2.81 x 3.31" (123.19 x 71.37 x 84.07mm) 3.4 lbs

(The spade terminals are perpendicular & recessed on this battery)

5.5 x 4 x 1.9" (139.7 x 101.6 x 48.26mm) 3.5lbs

(CB1240, CP1250, E1250, GP1245, HR1221WF1, NP4-12, PK12V4.0, RT1250, UB1245)

3/16" terminal This battery is used in many security alarm systems.

(a 6Ah battery is a longer lasting battery than a 4Ah or 4.5Ah battery and is fully interchangeable)

3.56 x 2.77 x 3.94" (90.42 x 70.36 x 100.08mm) 4lbs

RBC29, RBC30 RBC43, RBC44, RBC45, RBC46 RBC143, HR1221W F2 CP1250, NP x -25FTR PS1250, RT1250)

3.56 x 2.77 x 3.94" (90.42 x 70.36 x 100.08mm) 4lbs

(The spade terminals are perpendicular & recessed on this battery)

5.5 x x1.89 x 4.02" 3.95 lbs

4.24 x 2.76 x 5.51" (107.7 x 70.10 x 139.95mm) 5.4lbs

5.94 x 2.01 x 3.7" (150.88 x 51.05 x 93.98mm)

5.97 x 2.57 x 3.72" (151.64 x 65.28 x 94.49mm)

(RBC2, RBC17, RBC24, BP7-12, CP1270, LCR12V65 LC-R127R2P1 BP7-12 GP1270 F2 GP1272 F2, NPW36-12 NPW45-12, PE12V7.2 RBC17, RBC48, RBC110

5.95 x 2.56 x 3.94" (151.13 x 65.02 x 100.08mm) 5.5lbs

(6FM6, A512, BD7-12, E1270, E1275, NP7-12,NP7-12FR, RBC54, D1272 GP1270 F1, LW-6FM6 PS-1270F1 SA1272, UB1270, UT1270, UT1280)

5.95 x 2.56 x 3.94" (151.13 x 65.02 x 100.08mm) 5.5lbs

battery is totally sealed and comes with acid bottle as it is shipped dry.6 month warranty

6 x 3.44 x 3.75" (152.4 x 87.38 x 95.25mm) 6.6lbs

RBC17, RBC51 RBC124, CP1290 HR1234W, NPW45-12PS1290F2, SLA1088 UB1290, WP1234W, WP1236W

5.94 x 2.56 x 3.7" (151.13 x 65.02 x 100.08mm) 5.75lbs

5.94 x 2.56 x 3.7" (151.13 x 65.02 x 100.08mm) 5.75lbs

5.94 x 2.56 x 4.37" (151.13 x 65.02 x 111mm) 8lbs

6.0 x 3.43 x 4.38" (152.4 x 87.12 x 111.25mm) 8.6lbs

(RBC4, 6-DZM-10 FP12120, GP12110 HF12-12, NP12-12 PS-1210F2, RM12-12 TPH12100, TR12-12F2UB12120, WP12-12, WPHR12-12)

Can be supplied with 3/16" terminal adapter at no charge

5.97 x 3.89 x 3.78" (151.64 x 98.81 x 96.01mm) 10lbs

6 x 3.44 x 5.75" (152.4 x 87.38 x 146.05mm) 10lbs

(90P4831, BP17-12 DCM0018, EV x -12170 GP12170 LC-R1217, LC12V17, NP18-12 PE12V18, PS-12180, RBC7,RBC11 UB12180)

1.97 x 1.34 x 3.94" (50.04 x 34.04 x 100.08mm)
.89 lbs

1.85 x 2.09 x 3.98 (46.99 x 53.09 x 101.09mm)
1.45 lbs

4.02 x 1.73 x 3.74 (102.11 x 43.94 x 95mm)
2.7 lbs

1.97 x 1.65 x 2.01(50.04 x 41.91 x 51.05mm)
.675 lbs

3.82 x .98 x 1.99 (97.03 x 24.89 x 50.55mm)
.675 lbs

1.69 x 1.46 x 2.99" (42.93 x 37.08 x 75.95mm)
1.3 lbs

2.6 x 1.30 x 3.86 (66.04 x 33.02 x 98.04mm)
1.3 lbs

4.65 x 2.6 x 1.3 (118.11 x 66.04 x 33.02mm)
1.5 lbs

5.28 x 1.34 x 2.64 (134.11 x 34.04 x 67.06mm)
1.55 lbs

(3FM4, 3FM5, BP4.5-6, FP645, DJW6-4.0, DM-64
FP650, 3-FM-4.5, LC-S064R1PU
LCS-416P, LT645, NP4-6, NP4.5-6
PS-640-F1, SLA0905
SY640C, UB645)

2.76 x 1.85 x 4.21 (70.10 x 46.99 x 106.94mm)
1.9 lbs

2.8 x 1.89 x 3.94 (71.12 x 48.01 x 100.08mm)
1.9 lbs

2.64 x 2.65 x 3.94 (67.06 x 67.31 x 100.08mm)
1.9 lbs

3.86 x 2.2 x 4.02 (98.04 x 55.88 x 102.11mm)
2.7lbs

5.94 x 1.38 x 3.67" (150.88 x 35.05 x 93.22mm)
3 lbs

6CE7.5T1, FP672, GP670
GP672 LCRB066R5P,LCR067R2P
LCR6V6.5BP, LCR6V7.2P
PE-6V7.2, PE-6V7.2F1
PE6V7.2, PE6V7.2F1
PS670, RBC-18, SA672

5.94 x 1.34 x 3.94" (150.88 x 34.04 x 100.08mm)
3 lbs

5.95 x 1.34 x 3.7" (151.13 x 34.04 x 93.98mm)
3 lbs

3.86 x 2.21 x 4.65 (98.04 x 56.13 x 118.11mm)
3.6 lbs

5.94 x 1.97 x 3.7" (150.88 x 50.04 x 93.98mm)
4.1lbs

GP6120F2
Yuasa NP12-6)
(RBC3-use 2 batteries or one SLA10-12/T25)
(LCR6V12P1)

5.94 x 1.97 x 3 .7" (150.88 x 50.04 x 93.98mm)
4.1lbs

4.25 x 2.76 x 5.51" (107.95 x 70.10 x 139.95mm)
5.4 lbs

6.18 x 3.27 x 4.92" (156.97 x 83.06 x 124.97mm)
4lbs

5.28 x 1.44 x 2.18" (134.11 x 36.58 x 55.37mm)
1.9 lbs

3.8 x .98 x 2.42 (96.52 x 24.89 x 61.47mm)
.785lbs

3.82 x 1.89 x 1.99" (97.03 x 48.01 x 50.55mm)
1.35 lbs

5.91 x .79 x 3.35" (150.11 x 20.07 x 85.09mm)
1.6 lbs

2.79 x 1.89 x 3.86" (70.87 x 48.01 x 98.04mm)
2.16 lbs

7.01 x 1.38 x 2.64" (178.05 x 35.05 x 67.06mm)
2.16 lbs

LC-R122P2PU
LC-R122R2PU
LCR12V1.9P
LCR12V2.2P
LCR12V2.2PF
P171

6.97 x 1.34 x 2.36" (177.04 x 34.04 x 59.94mm)
2.16 lbs

(BD2312,
NP2.3-12FP)

3.11 x 2.2 x 3.9" (78.99 x 55.88 x 99.06mm)
3 lbs

5.20 x 1.3 x 3.86" (132.08 x 33.02 x 98.04mm)
2.5 lbs

(6FM3.5, 1500,
A512/3.5 S
CP1232
WP3-12)

5.28 x 2.64 x 2.36" (134.11 x 67.06 x 59.94mm)
3.1 lbs

5.28 x 2.64 x 2.36" (134.11 x 67.06 x 59.94mm)
3.1 lbs

4.02 x 1.89 x 2.58" (102.11 x 48.06 x 65.53mm)
1.55 lbs

4.85 x 2.81 x 3.31" (123.19 x 71.37 x 84.07mm)
3.4 lbs

5.5 x 4 x 1.9" (139.7 x 101.6 x 48.26mm)
3.5lbs

3/16" terminal
This battery is used in many security alarm systems.

3.56 x 2.77 x 3.94" (90.42 x 70.36 x 100.08mm)
4lbs

RBC29, RBC30
RBC43, RBC44,
RBC45, RBC46
RBC143, HR1221W F2
CP1250, NP x -25FTR
PS1250, RT1250)

3.56 x 2.77 x 3.94" (90.42 x 70.36 x 100.08mm)
4lbs

5.5 x x1.89 x 4.02"
3.95 lbs

4.24 x 2.76 x 5.51" (107.7 x 70.10 x 139.95mm)
5.4lbs

(RBC2, RBC17, RBC24,
BP7-12, CP1270, LCR12V65
LC-R127R2P1
BP7-12 GP1270 F2
GP1272 F2, NPW36-12
NPW45-12, PE12V7.2
RBC17, RBC48, RBC110

5.95 x 2.56 x 3.94" (151.13 x 65.02 x 100.08mm)
5.5lbs

(6FM6, A512, BD7-12, E1270, E1275, NP7-12,
NP7-12FR, RBC54, D1272
GP1270 F1, LW-6FM6
PS-1270F1
SA1272, UB1270, UT1270, UT1280)

5.95 x 2.56 x 3.94" (151.13 x 65.02 x 100.08mm)
5.5lbs

battery is totally sealed and comes with acid bottle as it is shipped dry.
6 month warranty

6 x 3.44 x 3.75" (152.4 x 87.38 x 95.25mm)
6.6lbs

RBC17, RBC51
RBC124, CP1290
HR1234W, NPW45-12
PS1290F2, SLA1088
UB1290,
WP1234W, WP1236W

5.94 x 2.56 x 3.7" (151.13 x 65.02 x 100.08mm)
5.75lbs

5.94 x 2.56 x 3.7" (151.13 x 65.02 x 100.08mm)
5.75lbs

5.94 x 2.56 x 4.37" (151.13 x 65.02 x 111mm)
8lbs

6.0 x 3.43 x 4.38" (152.4 x 87.12 x 111.25mm)
8.6lbs

(RBC4, 6-DZM-10
FP12120, GP12110
HF12-12, NP12-12
PS-1210F2, RM12-12
TPH12100, TR12-12F2
UB12120, WP12-12, WPHR12-12)

5.97 x 3.89 x 3.78" (151.64 x 98.81 x 96.01mm)
10lbs

6 x 3.44 x 5.75" (152.4 x 87.38 x 146.05mm)
10lbs

(90P4831, BP17-12
DCM0018, EV x -12170 GP12170
LC-R1217, LC12V17, NP18-12
PE12V18, PS-12180, RBC7,RBC11
UB12180)

7.06 x 2.93 x 6.57" (179.32 x 74.42 x 166.88mm)
15lbs

(6-FM-22, BP17-12, EVX-12170
GP12170, LC-R1217, LC12V17, LW 6FM22, NP18-12
PE12V18, PS-12180, RBC7,RBC11, SBB 6FM22
UB12180)

7.13 x 3.03 x 6.57" (181.10 x 76.96 x 166.88mm)
15 lbs

6.54 x 6.89 x 4.92" (166.12 x 175.01 x 124.97mm)
22lbs

6.92 x 6.56 x 4.96" (175.77 x 166.62 x 125.98mm)
22lbs

6.60 x 6.90 x 4.90" (167.64 x 175.26 x 124.46mm)
21lbs

7.68 x 5.12 x 6.26" (195.07 x 130.05 x 159mm
23.5lbs

(FM12330, GP12340
LC-R123, LCL-12V33
LCLA-1233, PS12330
U1-33-12)

7.68 x 5.12 x 6.26" (195.07 x 130.05 x 159mm)
23.5lbs

9.02 x 5.43 x 8.15" (229.11 x 137.92 x 207.01mm)
41lbs

9.04 x 5.45 x 8.15" (229.62 x 138.43 x 207.01mm)
39lbs

6.61 x 10.2 x 8.19" (167.89 x 259.08 x 208.03mm)
52lbs
